Supply and Fabrication of 10 Nos of U-Stamp Vessels and 2 Nos of Skid for TDE/Tatweer Petroleum
Project Background:
In 2020 Tatweer Petroleum decided to install two trains of rental compressor stations with 10 x 25 mmscfd compressors in each unit. TDE Overseas Ltd. was the EPC contractor, MCSC was awarded to supply 10 Nos of U-Stamp vessels and 2 Nos of Skid for the Provision of Compression Services-Phase V project.
Project Scope & Highlights:

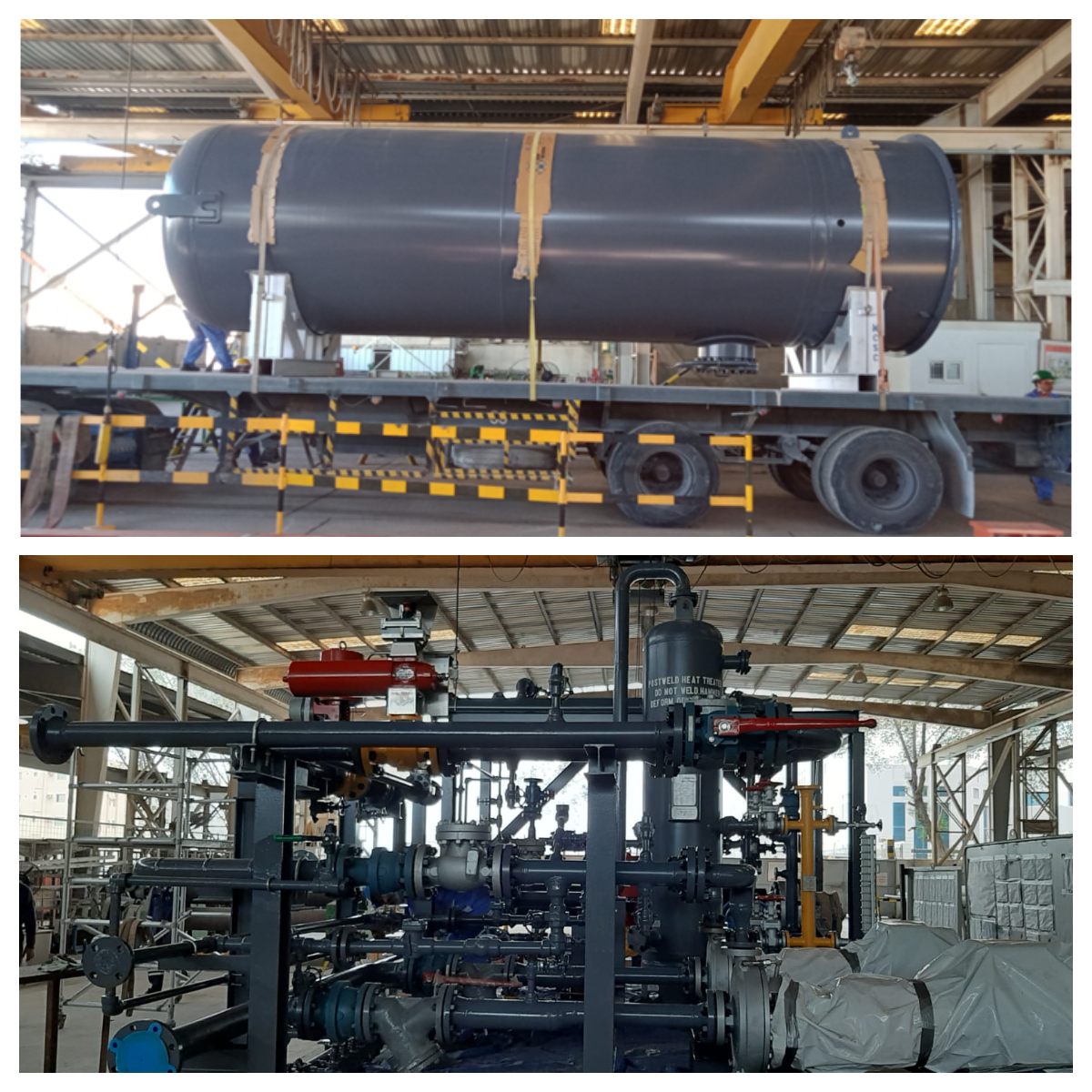

Project scope includes Supply, Fabrication of Vessels & Skids including Ladders, Access Platforms & Handrails, Installation of Internals, Blasting & Painting and Delivery to project site
-
Inlet Separator – 2 Nos
- Length- 7,747 mm
- Outside Diameter- 2,783 mm
- Thickness- 20 mm
- Weight- 12.5 Ton
-
Instrument Air Receiver – 2 Nos
- Length- 6,988 mm
- Outside Diameter- 1,708 mm
- Thickness- 16 mm
- Weight- 5.5 Ton
-
Start Air Receiver – 2 Nos
- Length- 8,146 mm
- Outside Diameter- 2,478 mm
- Thickness- 20 mm
- Weight- 10.9 Ton
-
Fuel Gas Scrubber – 2 Nos
- Length- 3,226 mm
- Outside Diameter- 610 mm
- Thickness- 14 mm
- Weight- 0.8 Ton
-
Closed Drain Vessel – 2 Nos
- Length- 3,924 mm
- Outside Diameter- 1,247 mm
- Thickness- 14 mm
- Weight- 2.5 Ton
