TATWEER PETROLEUM NAG LTFD Phase-1 Project (May 2018)

Project Background:

In order to maintain gas deliverability from the Awali field in Bahrain, Tatweer Petroleum undertook Long Term Field Development (LTFD) Project to install Centralized Gas Dehydration Facility (CGDF).

Phase 1 comprised On-Plot facilities (One Dehydration Train with associated support facilities and Off-Plot facilities). 05 Nos. of existing Wellhead Areas were upgraded and new pipelines were installed to provide connectivity with both new and existing field infrastructure.

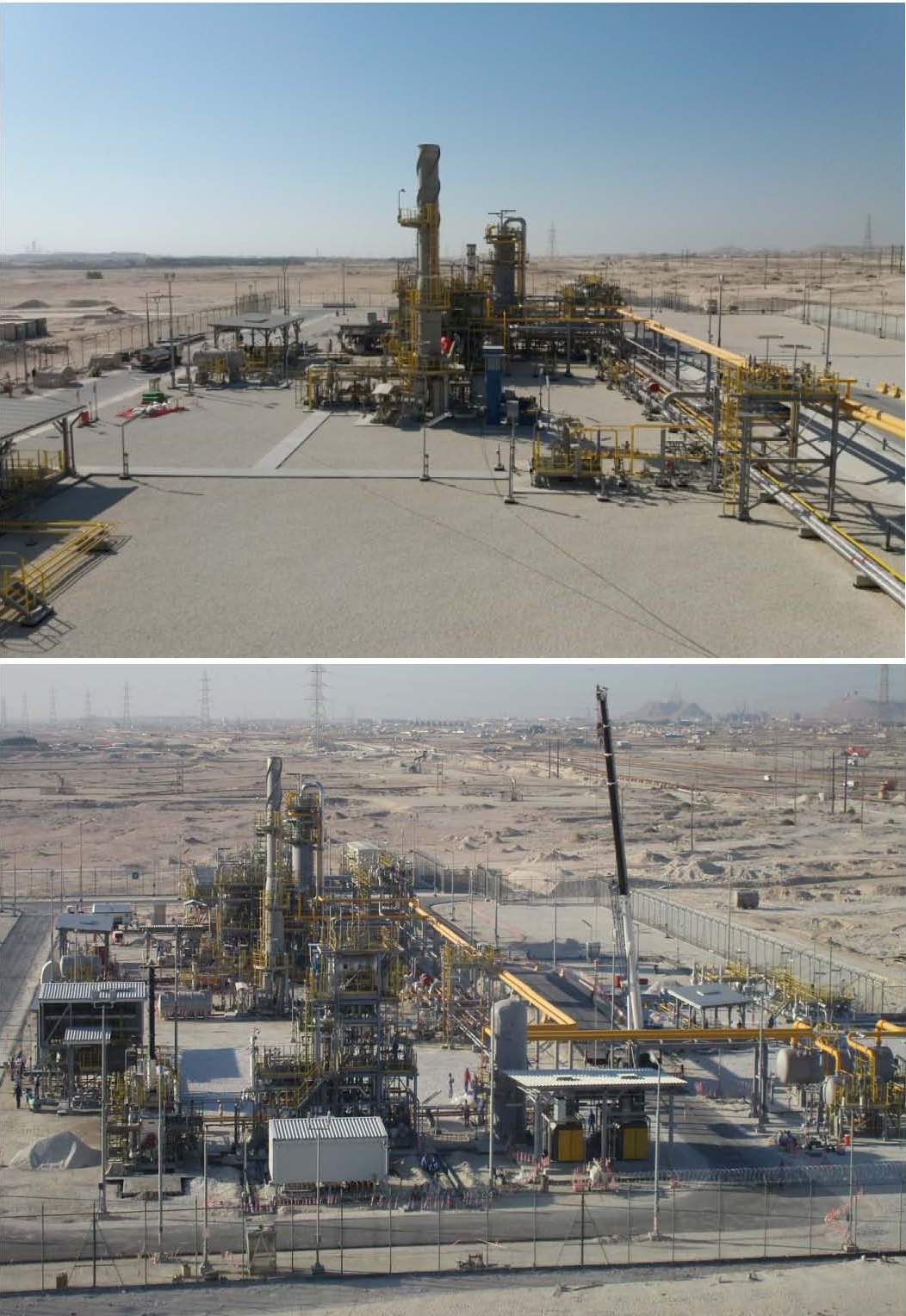

05 Nos. of existing Non Associated Gas (NAG) Wellheads were rerouted to a new production gathering network to supply Wet Gas to the new CGDF facility. Currently these five wells feed existing CGDUs (K01, K02 and K07). The new CGDF provided a new production pathway for these existing 5 Nos. of NAG wells and eliminated the bottleneck which was imposed by the existing CGDUs. The CGDF facility itself was installed at a Greenfield location within the Awali Field.

The EPC contractor for the project was Petrofac and the entire construction of the project was awarded to MCSC.

Project Scope & Highlights:

The scope of work for this project includes Civil, Mechanical, Piping, Pipeline, Electrical, Instrumentation, Painting and Insulation including Pre-commissioning & Commissioning assistance works.

  • Duration: 27 Months (February 2016 to May 2018)
  • Man-hours: 2,217,432 Hours, without LTI
  • Concrete Works: 5,080 Cu. M.
  • Site Grading Works: 40,581 Cu. M
  • Rebar Works: 345 Tons
  • Asphalting & Paving Works: 11,434 Sq. M. & 1,765 Sq. M.
  • Piping Works: 47,374 Inch Dia.
  • Pipeline Works: 30,596 Inch Dia.
  • Area Painted: 5,243 Sq. M.
  • Structural Steel Fabricated & Erected: 626 Tons
  • Equipment Erected: 53 No.s
  • Electrical Cable Layed: 49,658 M.
  • Instrument Cable Layed: 62,735 M.
  • FO Cable Layed: 3,240 M
  • Loop Checks: 682 No.s
  • Functional Tests: 174 No.s
