LPG Treating Project for BAPCO

Project Background:

BAPCO has two liquid LPG treating facilities. No.1 treating unit treats LPG from the naphtha rerun complex (NRC) and No.2 treats olefin LPG from the gas concentration unit (GCU) at 2 Poly plant. Both 2Poly and 1LPG are in the fluid catalytic cracking unit area. H2S in sour feed LPG is removed using caustic and the spent caustic is discharged into the sea via sea water return channel having an environmental impact.

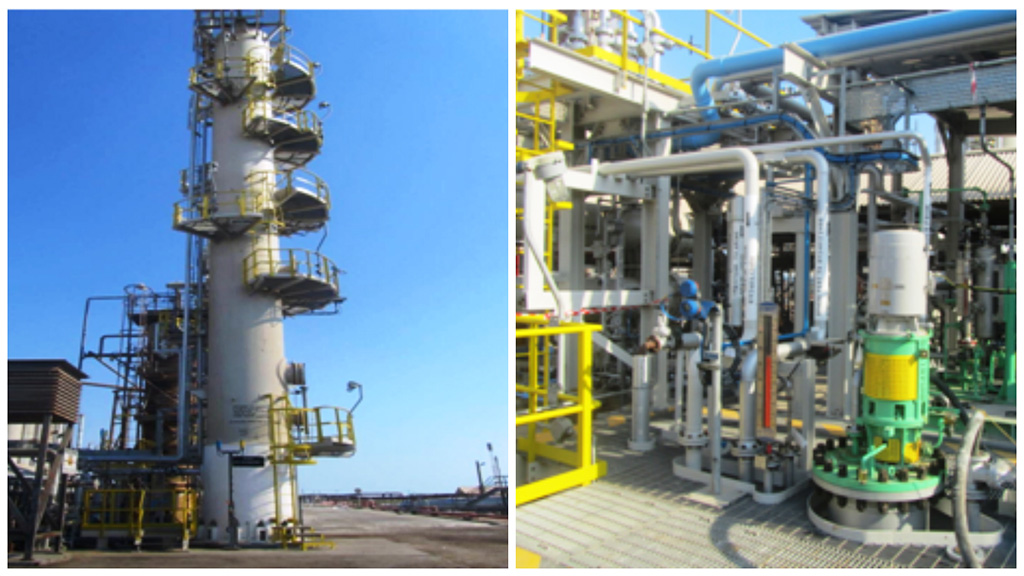

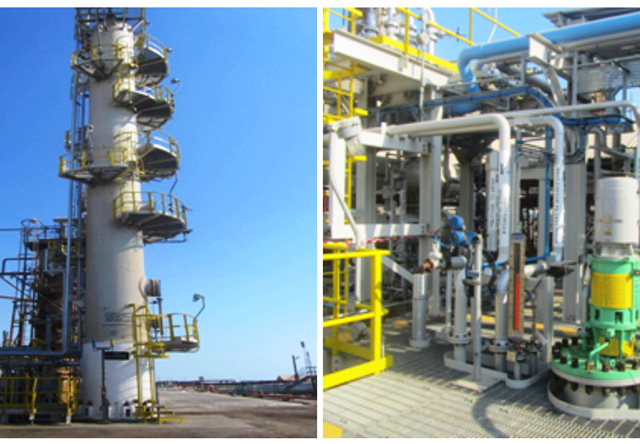

In order to address EHS issues related to caustic handling/disposal and ensure enhanced LPG recovery during the mode of operation, redundant column 8V402 and adding cooler/booster pump installed on amine circuit. The EPC contractor for this project is JGC.

Project Scope & Highlights:

Project scope included procurement of civil, mechanical, piping, painting, electrical, instrumentation, fire proofing, insulation, pre‚Äźcommissioning & commissioning assistance works.

  • Duration: 10 Months (Jan. 2014 to Oct. 2014)
  • Man-hours: 1, 30, 520 Hours, without LTI.
  • Concrete Works: 278 Cu.M.
  • Embedded steel insets: 0.3 Ton
  • Concrete fire proofing works: 40 Sq. M.
  • Piping Welding: 4,539 Inch Dia.
  • Structural Steel Fabricated & Erected: 21 Tons.
  • Equipment erected and commissioning: 75 Tons.
  • Piping Insulation works: 70M.
  • Electrical cable laid: 1,549 M.
  • Instrumentation cable laid: 1,770 M
  • Total Loop Checks: 31 Nos.
  • Total functional tests: 31 Nos.
